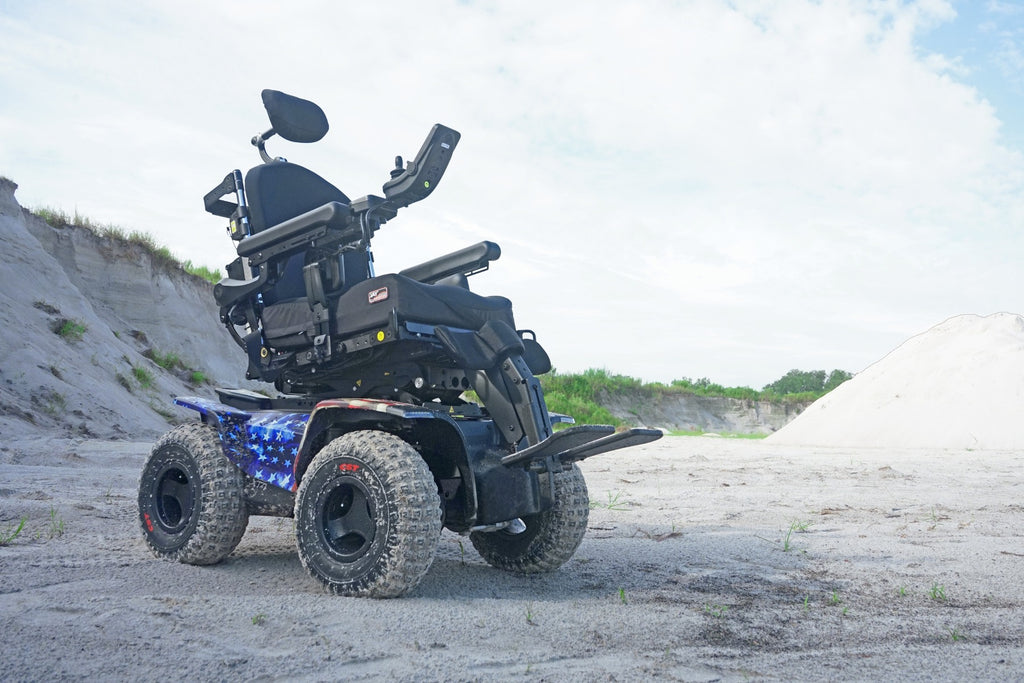

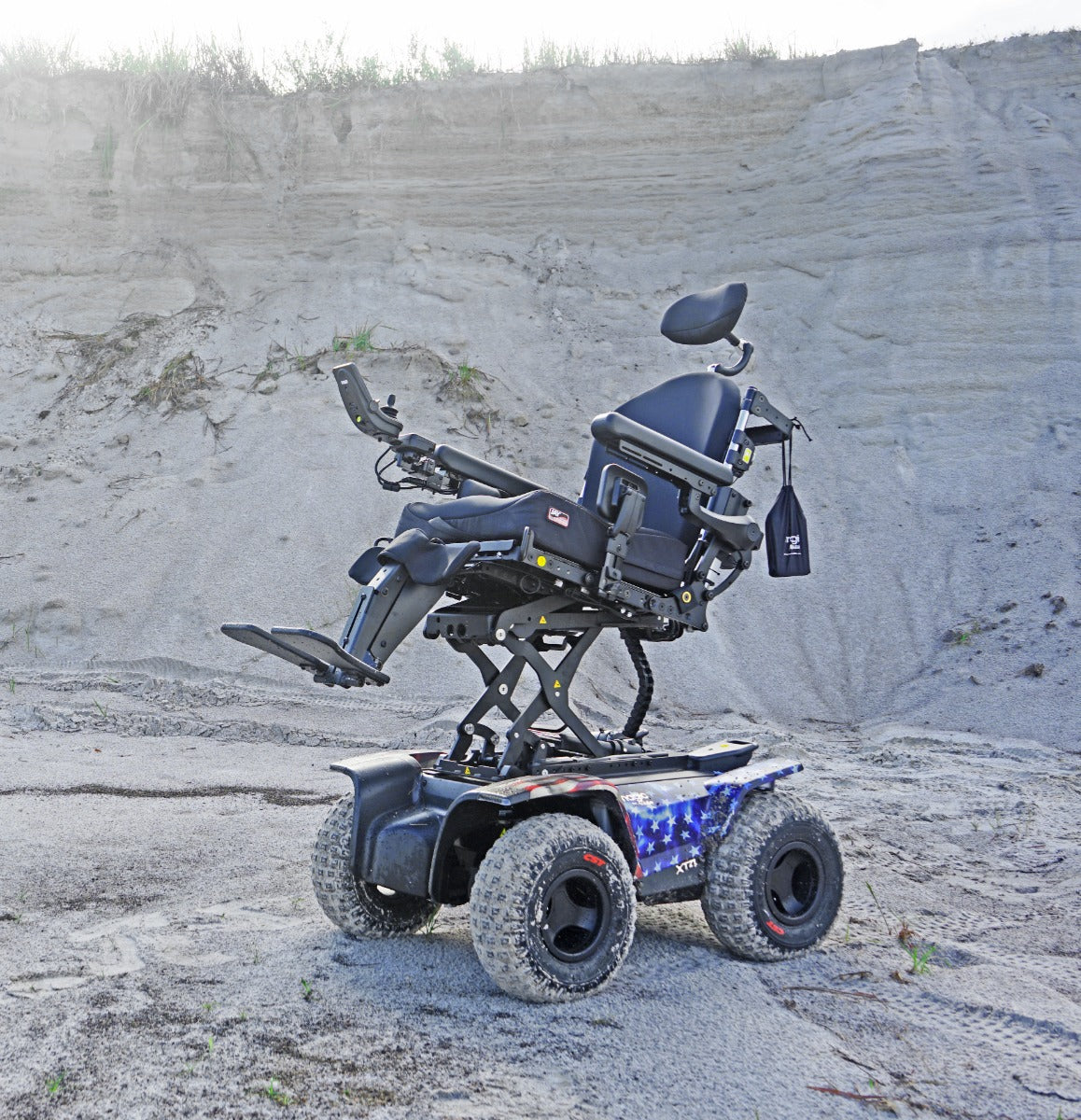

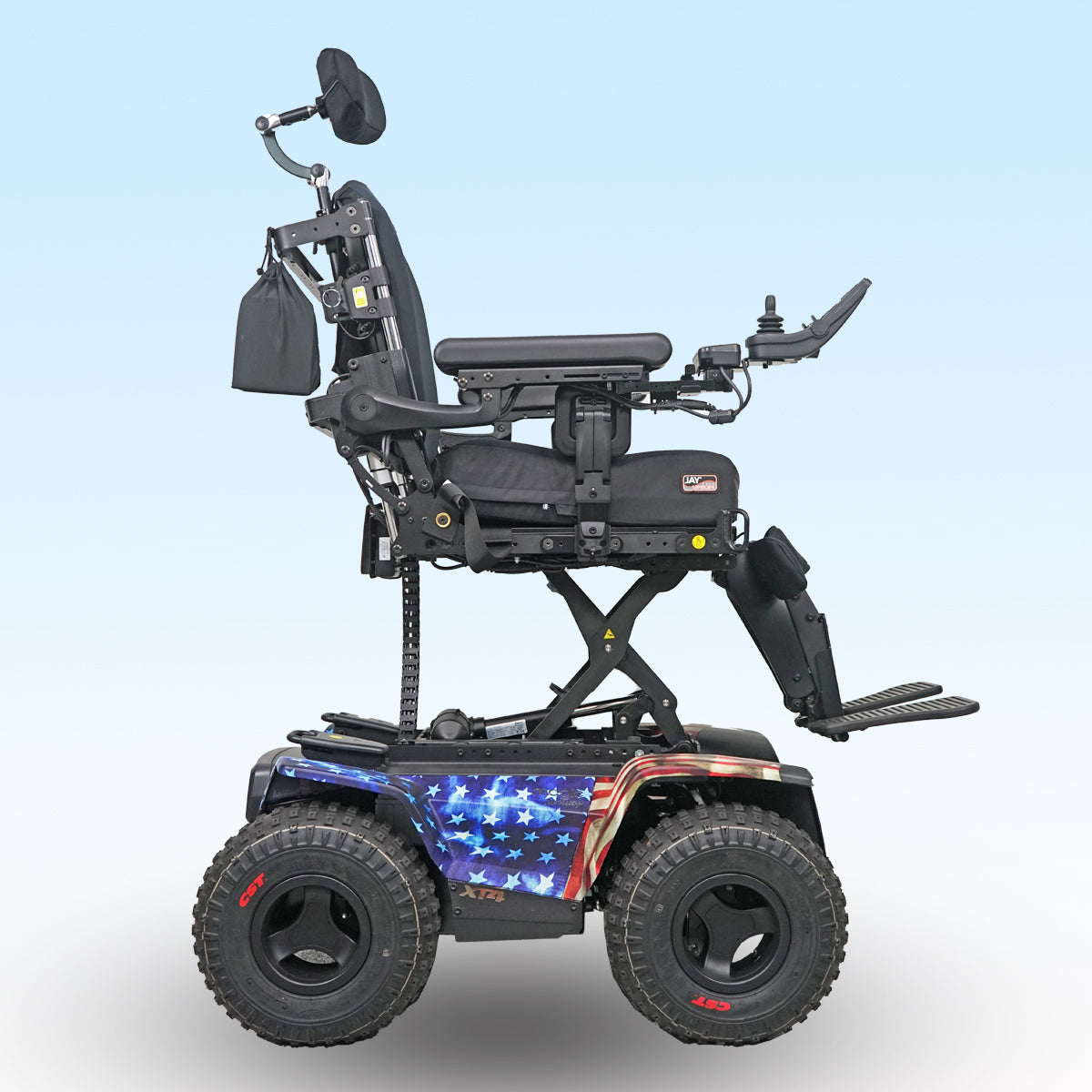

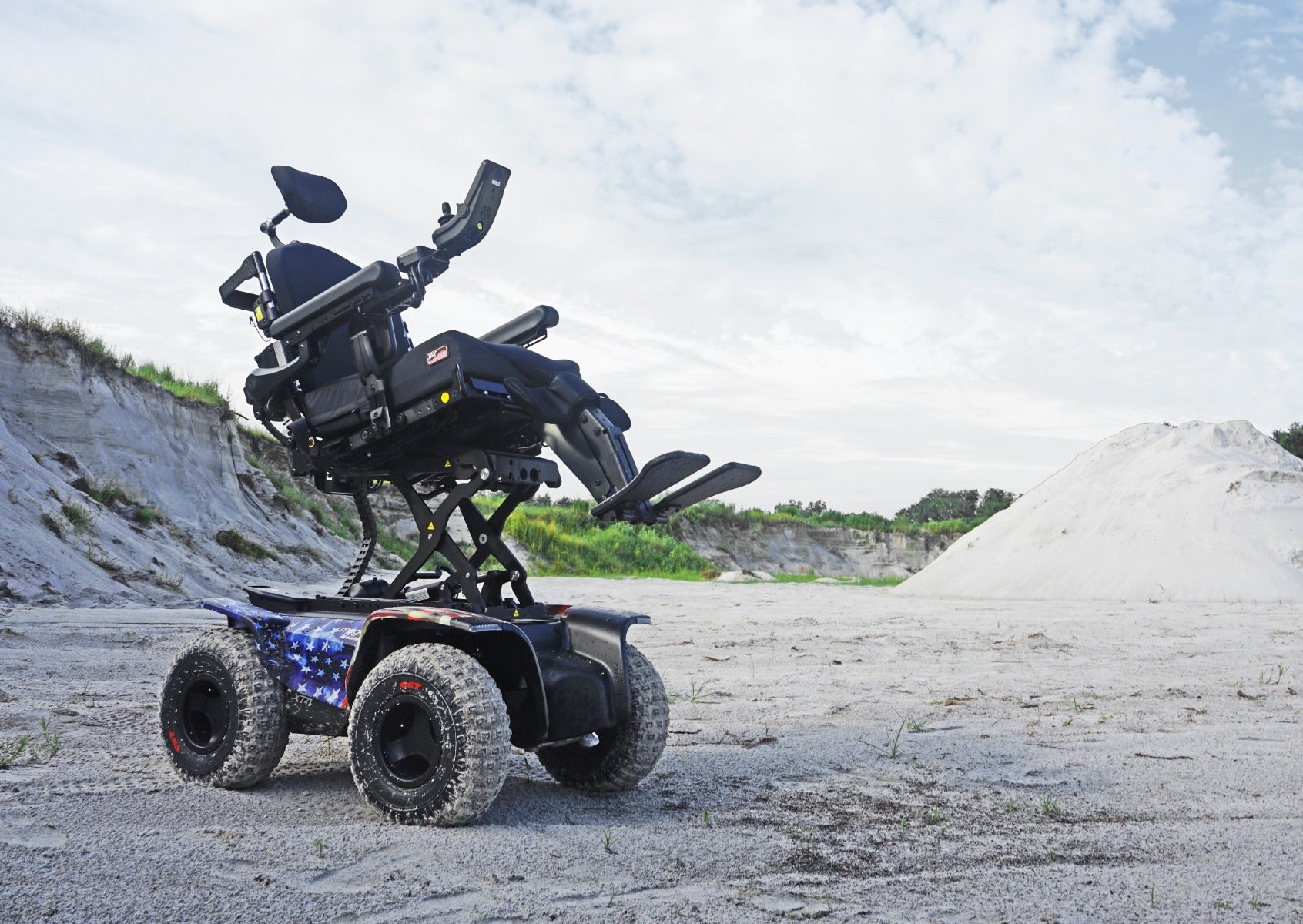

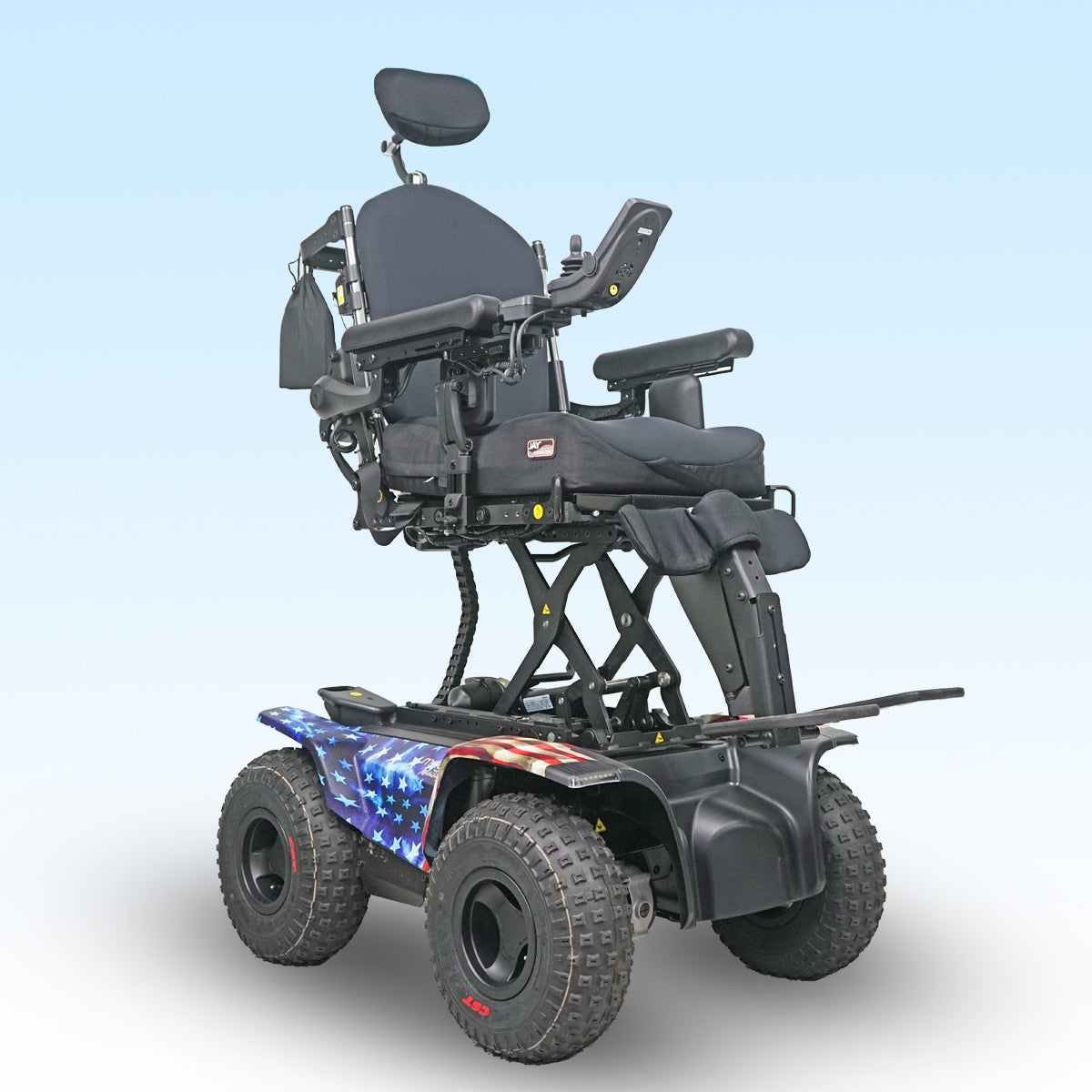

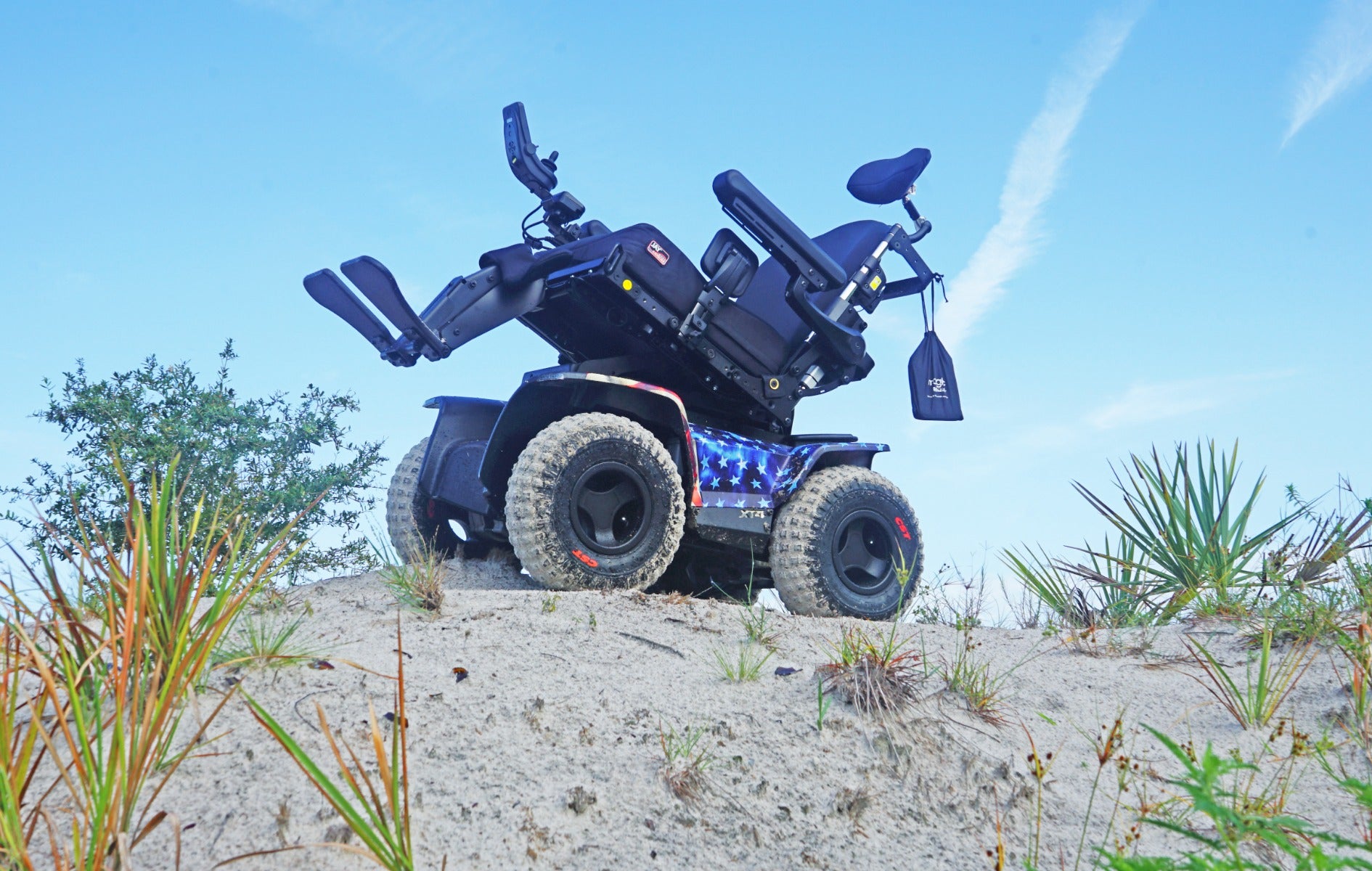

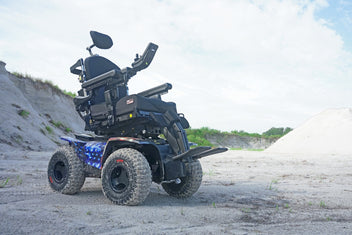

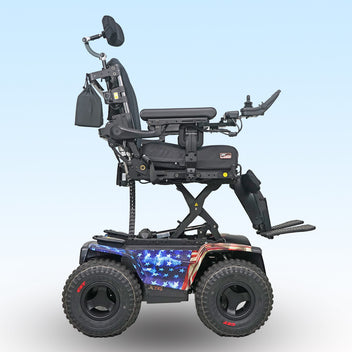

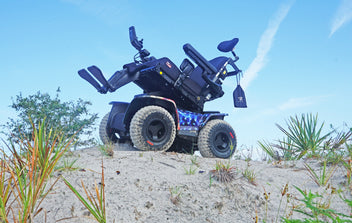

Magic Mobility XT4 All Terrain 4x4 Power Wheelchair

XT4 Features

14" Knobby Tires
4 Powerful 4 Pole DC Motors-one on each wheel - 700W each
Effortless, Intuitive Servo Power Steering
Max Speed of 6.2 mph; 3.1 mph at full seat elevation
Max Range of 19 miles (range can be impacted by setup of chair and driving conditions)
Fitted with two massive Group 31 batteries
Climbs Curbs with ease
400 lbs. User Capacity; 350 lbs. with Elevate or Tilt
MPS (Captain) and full REHAB seating options

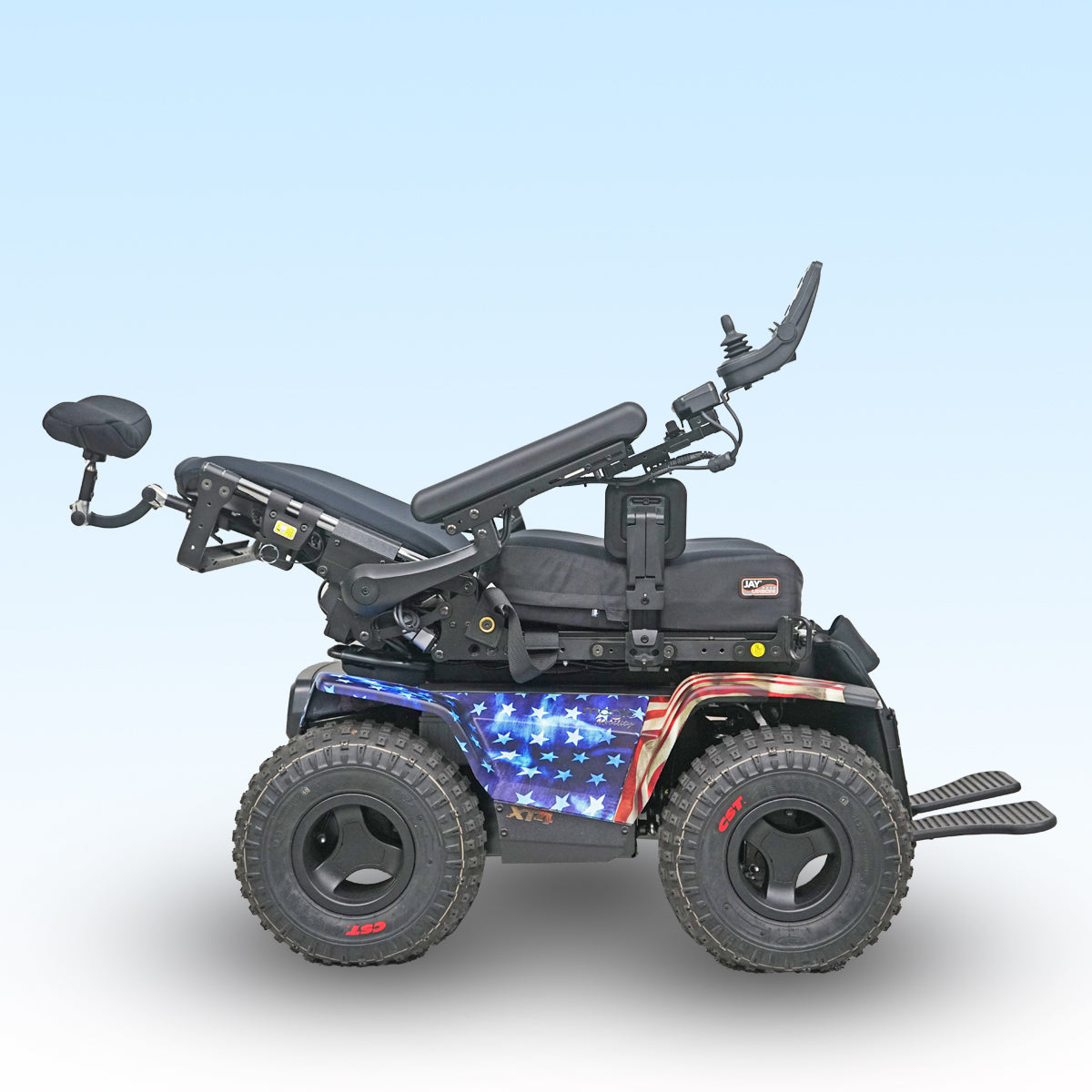

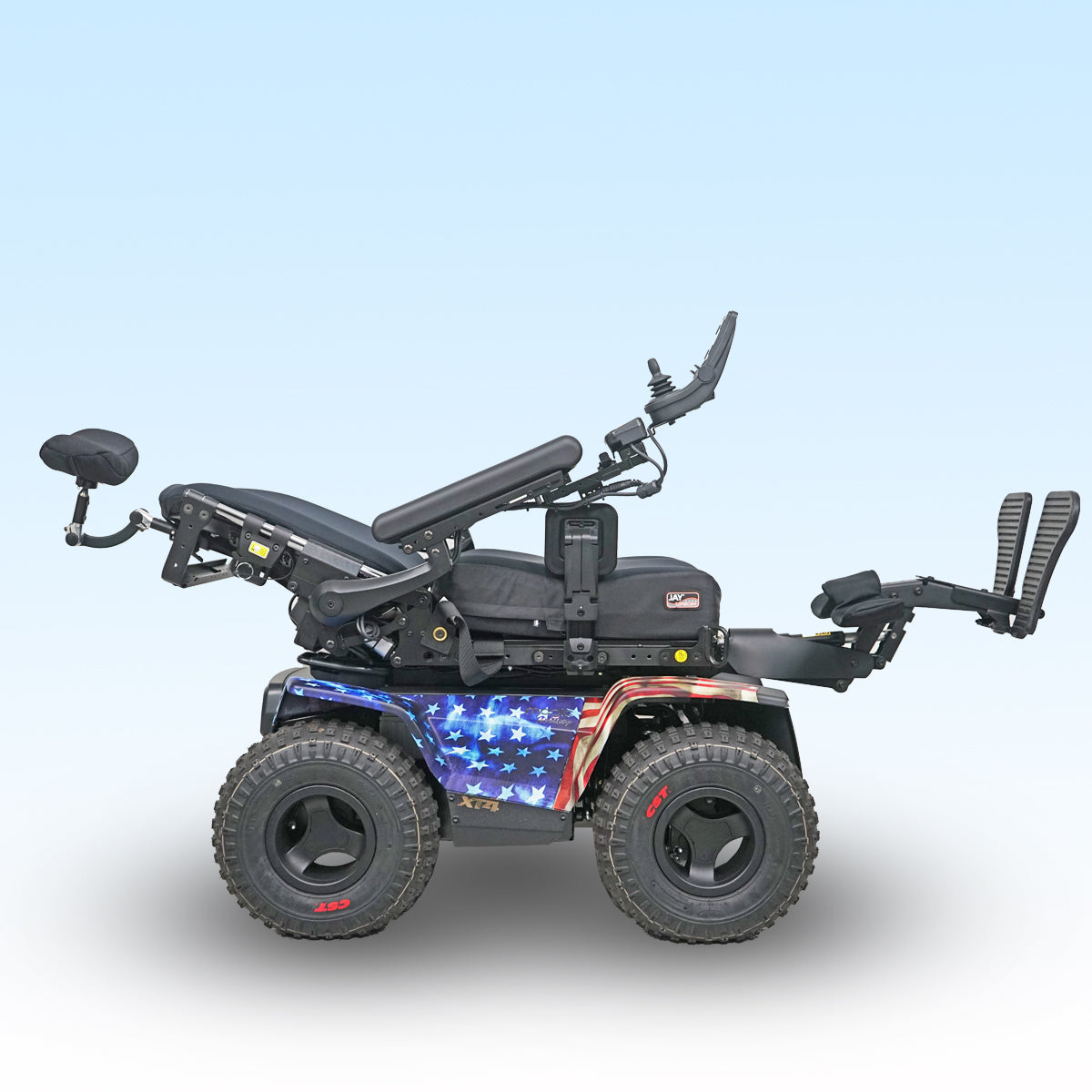

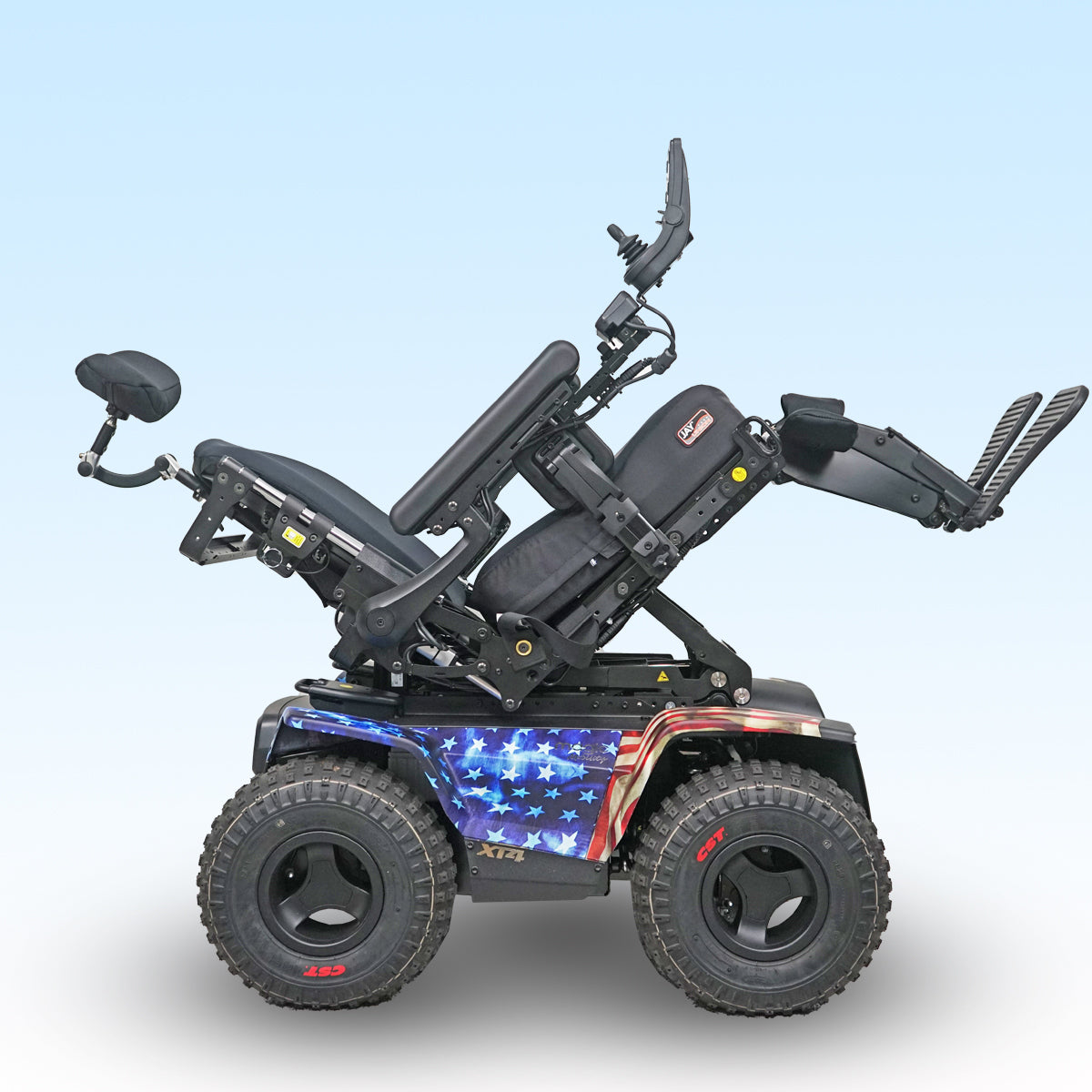

Available with Power Seat Lift, Power Tilt, Power Recline and Power Elevating Legrests
Color Options: Sunset Red, Horizon Blue, Midnight Black, American Flag, Camouflage, Digital Camo, Carbon Fiber

Model	XT4
Weight Capacity	400 lbs. 350 lbs. with Elevate or Tilt
Maximum Speed	6.2 mph 3.1 mph at full seat elevation
Ground Clearance	5"
Turning Radius	55.5”
Overall Length	39"
Overall Width	27.5"
Seat Depth	13" to 24"
Seat Width	13" to 23"
Floor to Seat Height	19" to 21"
Drive Tires	14" Pneumatic All Terrain
Drive Wheel Position	4x4
Driving Range	Up to 19 miles
Product Weight	Starting at 408 lbs.
Battery Type	Group 31
Back Height	Rehab back: 16.5"-24" Comfort (MPS) back: 22" & 26"
Motors	68Nm Torque, 700W, Gear-in-line (4 motors)- Total 2800 Watts

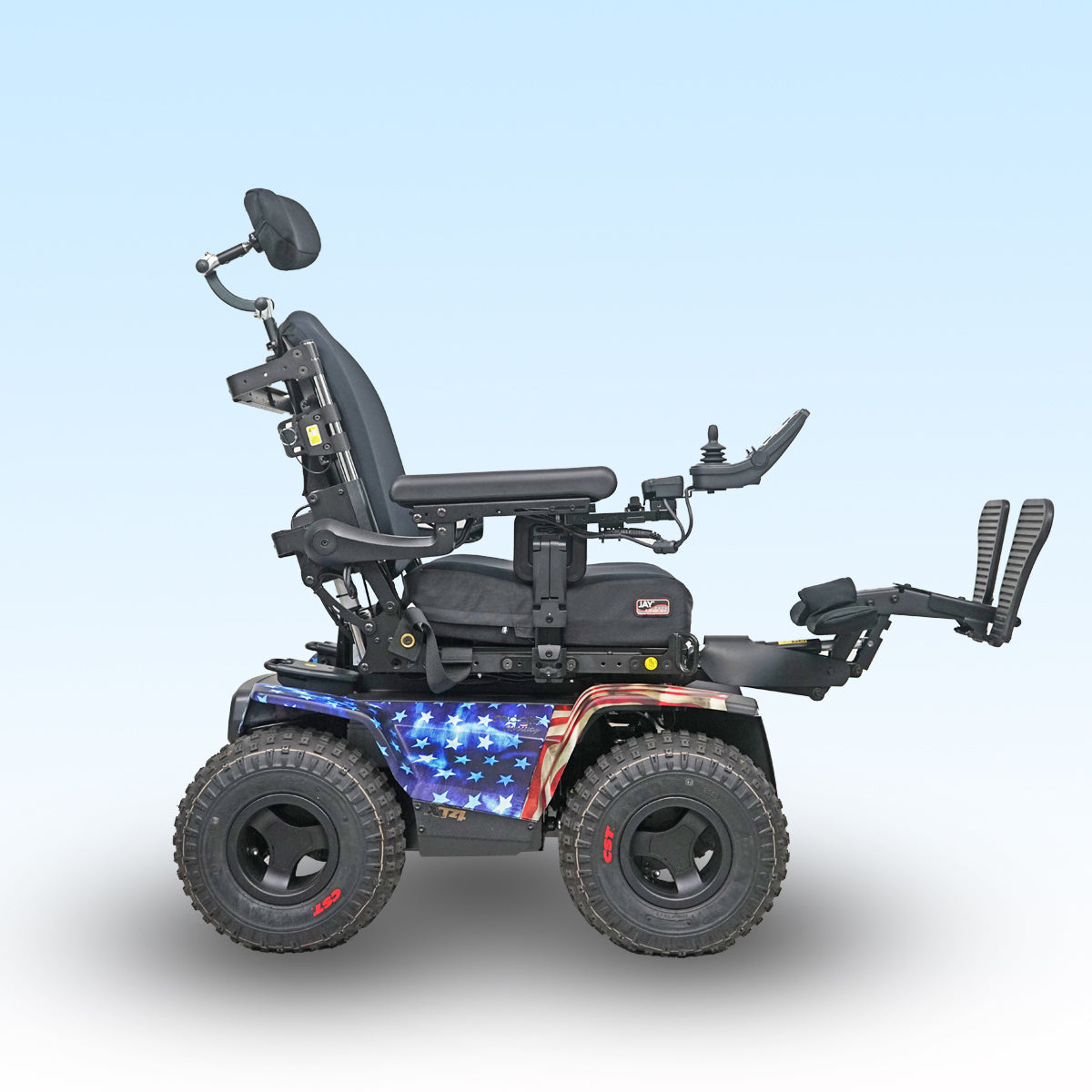

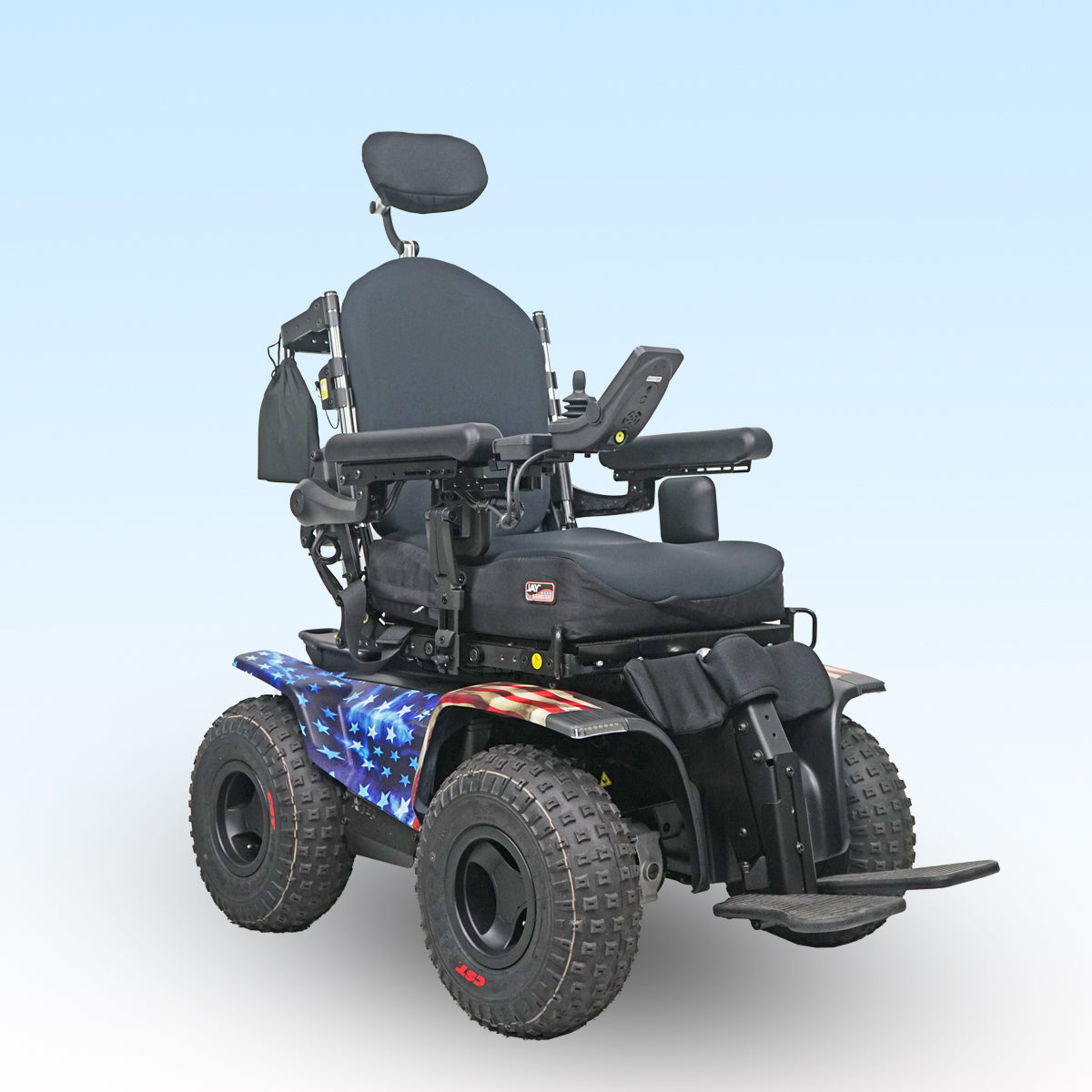

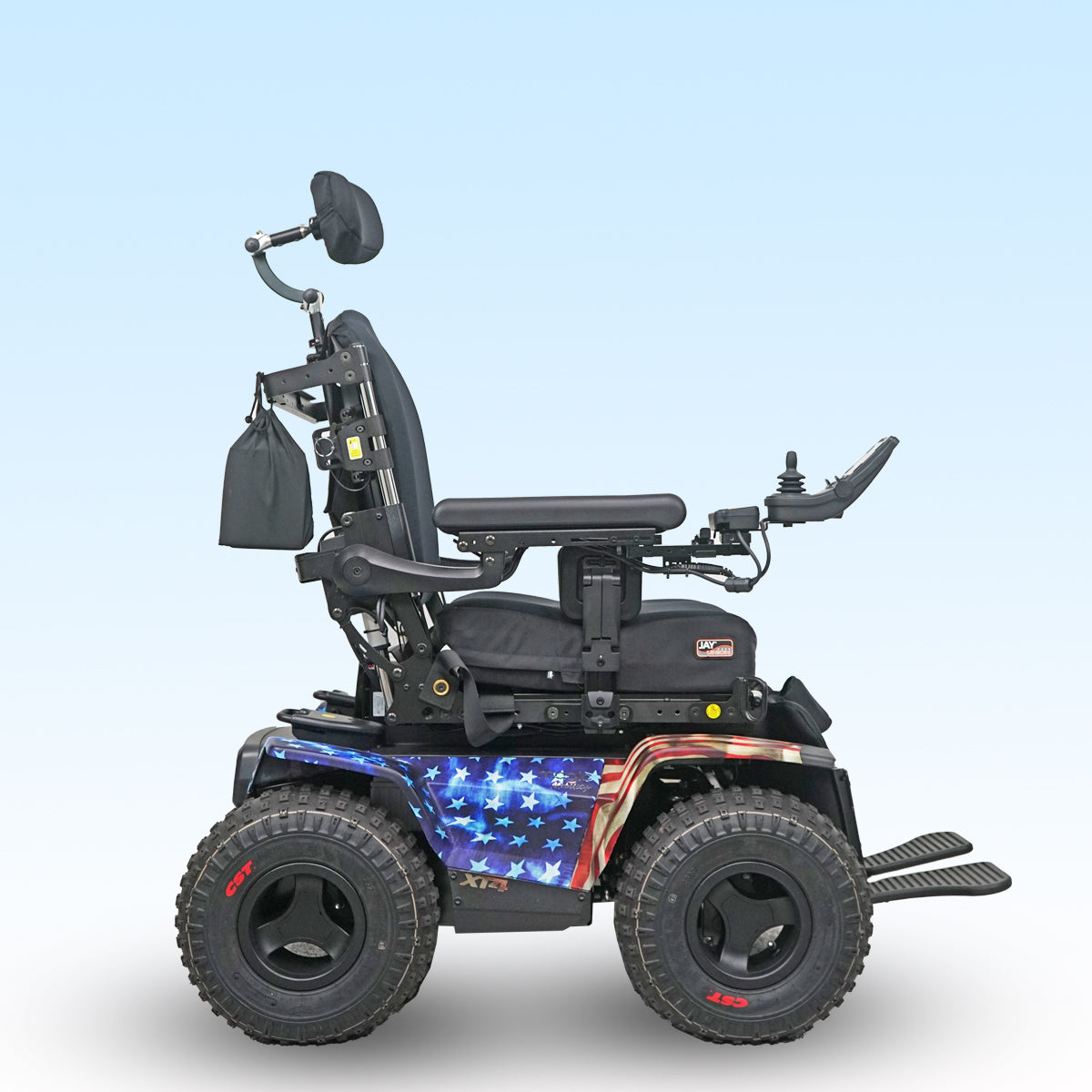

XT4 All Terrain 4x4 Power Wheelchair

Upgrade to driving the world's most advanced four-wheel drive power wheelchair. The XT4 builds on Magic Mobility's impressive experience in delivering extreme off-road 4WD power wheelchair performance. The XT4 boasts incredible stability, range, comfort, and control over even the most challenging of terrains.

The XT4's patented front and rear suspension, unique servo-powered steering, and high-capacity battery are combined with low-pressure, knobby tires. And it's powered by the torque needed in a world that's not flat. The XT4 is the ultimate wheelchair for outdoor adventurers.

Superior 4x4 traction and stability

The XT4's front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps to keep all four wheels firmly on the ground and delivers a smoother ride, greater stability, and more power & control across even the most extreme off-road terrains.

Effortless, intuitive steering

Steering the XT4 is smooth, easy, and precise. Its servo-powered system eliminates the struggle of traditional 4x4 power wheelchairs, making turning and reversing effortless. Just point the joystick in the direction you want to go, and the front wheels will follow! It makes driving in reverse a breeze and simplifies three-point turns & tight maneuvers. With responsive control and no requirement for a steering lock, the XT4 moves exactly where you want – with less effort and more confidence. Even on slippery or uneven terrain, the steering remains reliable and responsive, keeping you in control no matter where you ride.

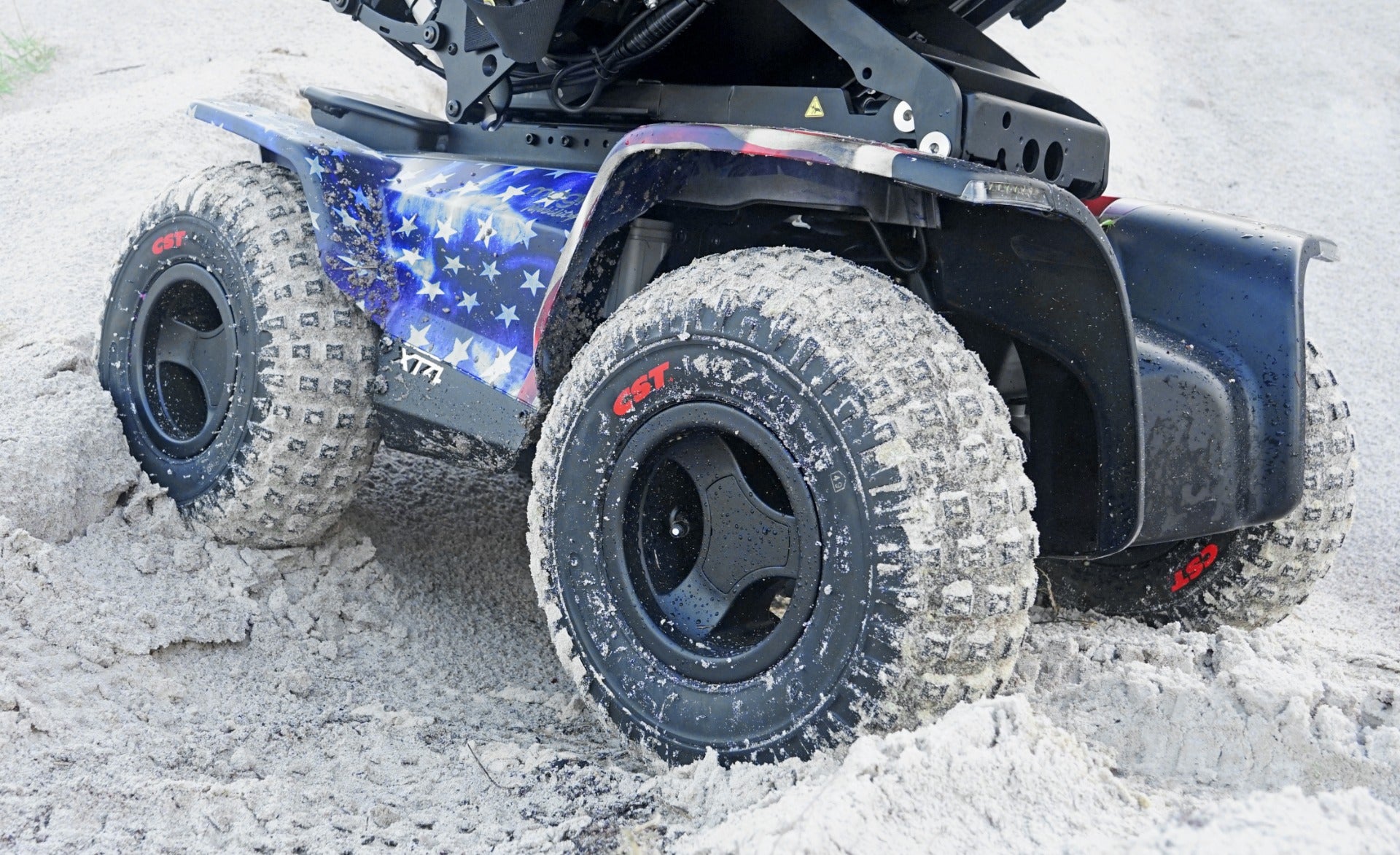

Unstoppable off-road traction

Each of the XT4's four knobby off-road tires are driven by high-efficiency, high-torque 700-watt motors. Easily power through mud, sand, or snow, and over curbs & other obstacles. Fitted with two massive Group 31 batteries as standard, the XT4 will take you further off-road than ever before.

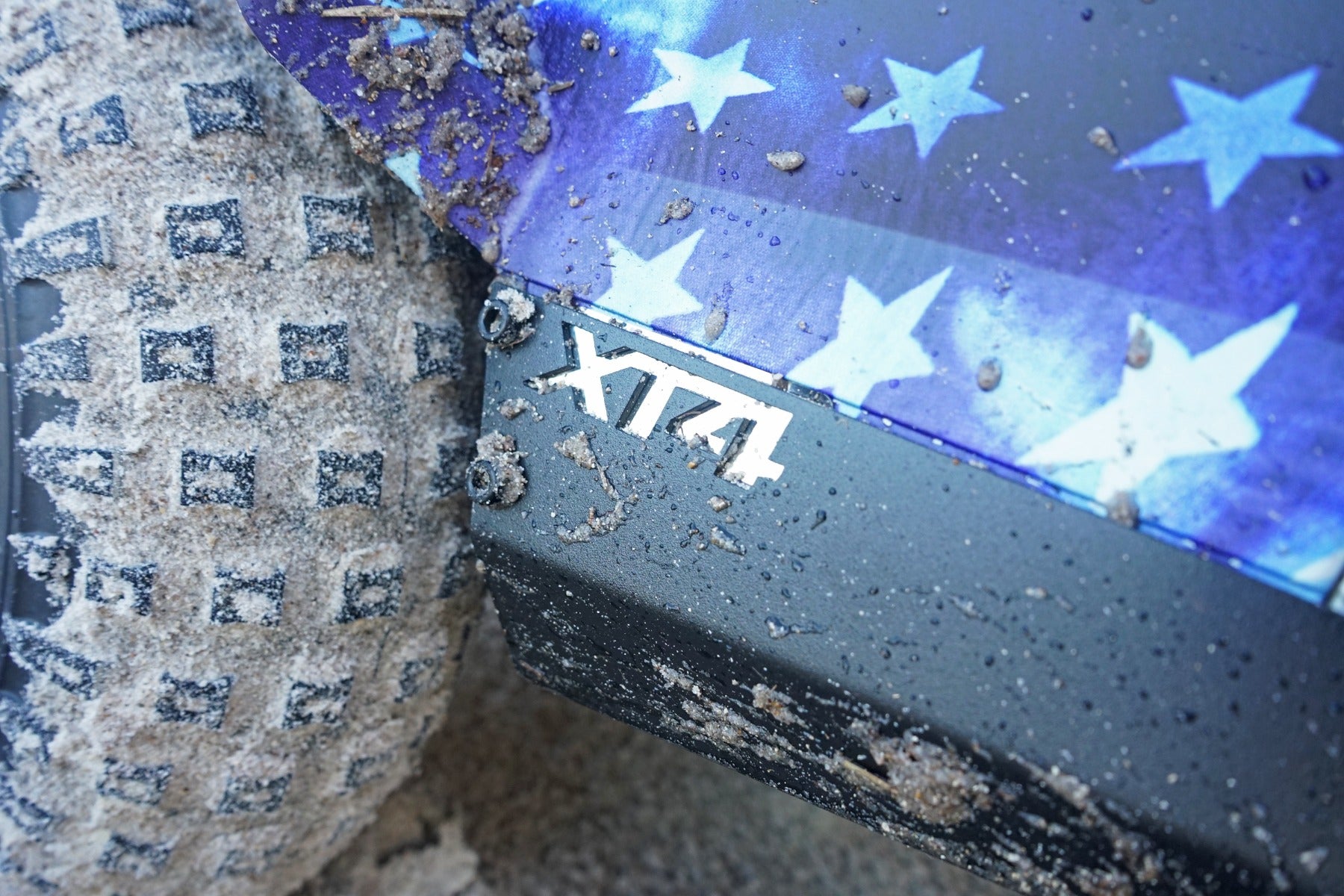

Leave No Trace

The Magic Mobility XT4 is designed to run at low tire pressures, reducing the risk of damaging trails and disturbing the natural landscape. In contrast, chairs with heavy-duty, aggressive tracked treads can cause significant ground erosion, soil compaction, and environmental damage, particularly in sensitive ecological areas.

PDF Order Form for XT4

General Frequently Asked Questions about New Power Wheelchairs

If you are hoping to invest in a new power wheelchair, it is important to understand the unique features and capabilities of the different types of drives for power wheelchairs. This includes Front-Wheel Drive, Mid-Wheel Drive, and Rear-Wheel Drive. In this Q&A, we define the different types of drives and explain the benefits and functionality of the features.

Q: What are the different types of drives for power wheelchairs?

A: Front-Wheel Drive, Mid-Wheel Drive, and Rear-Wheel Drive.

Q: What is a Front-Wheel Drive?

A: Front-Wheel Drive is where the main drive wheel is the first point of contact on the ground. Front-Wheel Drive power chairs have great traction for climbing over small objects and work great outdoors. These units need a few more inches in general for turning than a Mid-Wheel Drive chair but do perform much better outdoors. These can also be used indoors.

Q: What are some of the popular models of Front-Wheel Drive Power Chairs that you would recommend?

A: Some Front Wheel Drive Power Chairs include: Jazzy Select, Elite HD, Permobil F3, Jazzy Select 14, Jet 3 Ultra.

Q: What is a Mid-Wheel Drive?

A: Mid-Wheel Drive is where the main drive wheel is at the center of the chair. On all Mid-Wheel drive units, you will have two caster wheels in front and two in the rear or the main drive wheels. Mid-Wheel drive units are the best for indoors due to needing the smallest amount of space to turn as compared to Front-Wheel Rear Wheel drive chairs.

Q: Are there any downsides of a Mid-Wheel Drive Chair in comparison to other options?

A: The downside to a Mid-Wheel Drive chair is that if you do take it on soft surfaces outside, the front caster wheels can dig into the ground and can cause the Main-Drive wheels to spin in place. This is not very common, but it has a better chance of getting stuck in a front or rear-wheel drive unit.

Q: What type of Mid-Wheel Drive Power Chairs would you recommend?

A: Mid-Wheel Drive power chairs are very common such as the following: Jazzy 600 ES, Quantum ilevel, Jazzy Air, Jazzy Air 2, Permobil M3, Permobil M300, Quickie QM710, Pronto (M51, M61, M91, M94, M41). Most units that have electric seat lifts will be a Mid-Wheel Drive designed for maximum stability. Mid-Wheel Drive chairs are also the easiest to load into a side door entry mobility van, due to the sharpest and tightest turning radius on all the power chairs.

Q: What is a Rear-Wheel Drive?

A: The Rear-Wheel Drive is a unit that performs best outdoors. One of the downsides is that it does not perform well inside. This unit can climb higher objects and tracks the best for outdoor use, but it does not turn smoothly like a mid or front-wheel drive unit. This would not be a unit you would want to use inside unless you have a large open floor plan. An example of a rear wheel drive would be a Quantum Rival, Quickie P222, Hoveround RWD.
